Design on a canvas.Ship plain HTML.

EmVB puts a full visual editor inside the EmDash admin: layers, live styles, states, devices and a site-wide design system. Visitors get the markup and the CSS, not the builder.

Try it in your browser Install it

React + Kumo editor in the EmDash admin
Plain HTML and CSS on the public site
Node + SQLite or Cloudflare + D1

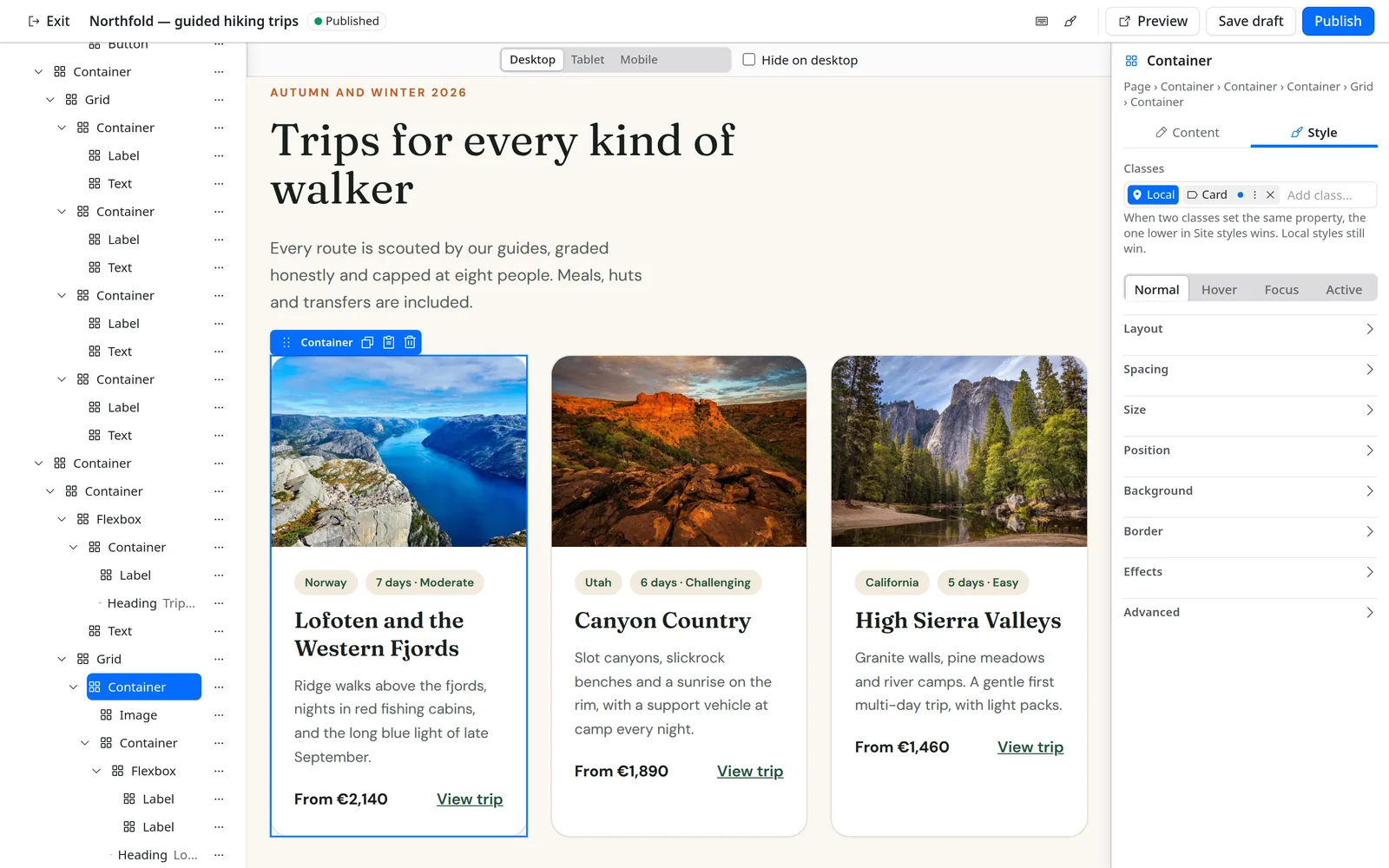

The EmVB editor: Layers tree on the left, a page with three trip cards on the canvas, a selected card with its Style panel on the right.

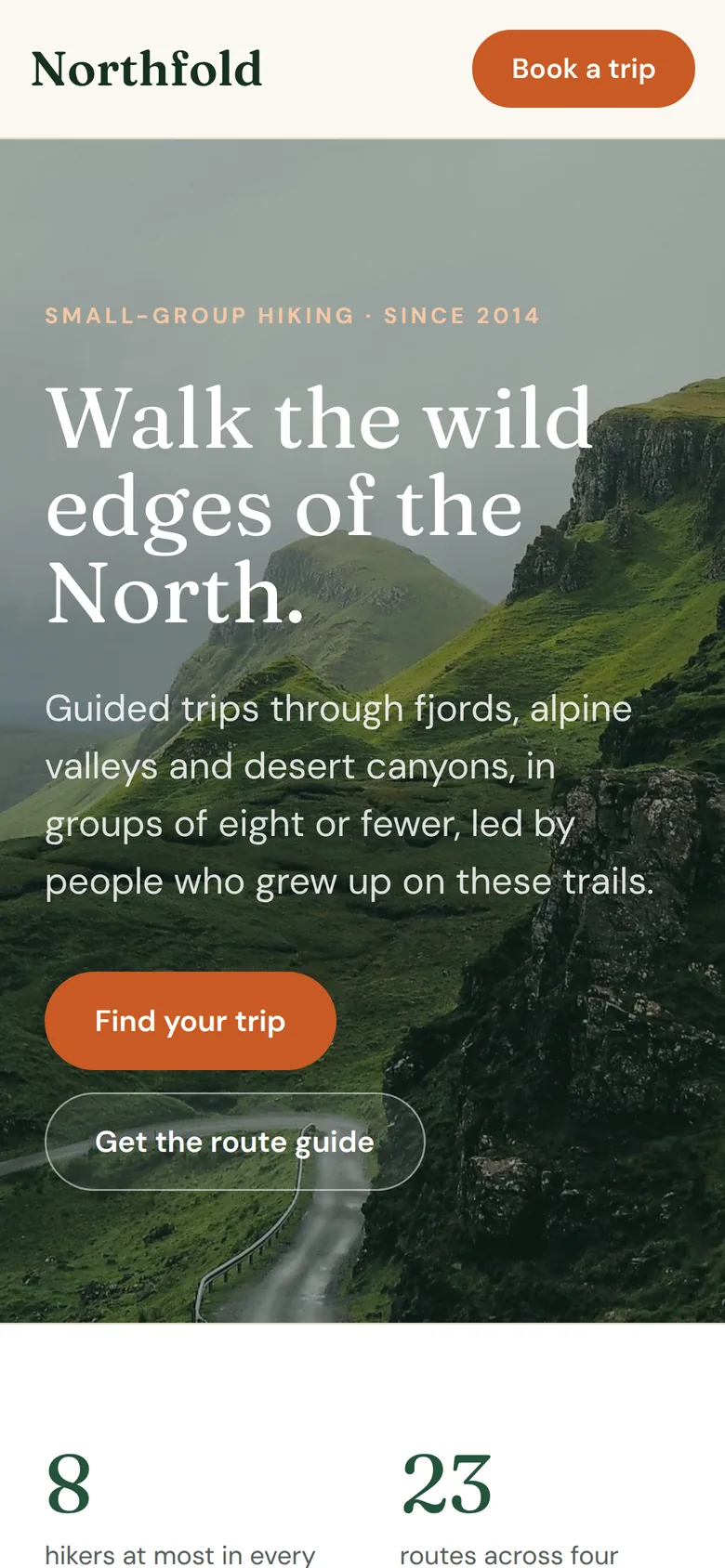

The Northfold hero on a phone, with the navigation hidden and the buttons stacked.

Features

A real builder, not a block editor

EmVB covers what site builders expect from a visual editor, and keeps the output small enough to read.

01Build

Drag, drop, nest: Drop elements from the Add panel onto the canvas, then reorder and nest them in the Layers tree or with the keyboard.
Edit text in place: Double-click a heading or paragraph on the canvas and type.
Copy, paste, undo: Copy elements and styles between pages, and step back through up to 100 edits with Ctrl or Cmd + Z.
An icon library: Over 14,000 icons from Lucide, Font Awesome Free, Tabler and Remix, or upload your own SVG.
Synced sections and templates: A Section element renders a shared part live. New pages can start from a page template.

02Style

Four states: Normal, Hover, Focus and Active, each with its own styles, plus transitions between them.
Per device: Tablet (up to 1024 px) and mobile (up to 767 px) overrides, and hide on device.
Backgrounds: Images, linear, radial and conic gradients with up to 10 stops, overlays and background video.
Grid and flexbox: Flexbox and CSS Grid containers, with 1 to 12 columns and spans on the children.
Entrance animations: Fade, slide and scale in, with a delay. Reduced motion turns them off.

03Design system

Variables: Colours, fonts, font sizes and spacings, published as CSS custom properties.
Classes with a clear order: When two classes set the same property, the one lower in the list wins. Local styles still win.
Tag defaults: Set the look of every h1, paragraph or link once.
Staged until published: Site style changes wait as a draft until you press Publish styles, then reach every live page.
Import and export: Move a design between sites as JSON.

The Add panel

All 39 elements, grouped the way the editor shows them. Tab panels come with their Tabs.

Layout

Container
Section
Spacer
Divider
Theme section
Div Block
Flexbox
Grid
Tabs
Accordion
Accordion item

Content

Heading
Text
Label
Link
Button
List
Icon
Video
SVG
Menu
Menu item

Dynamic

Post Title
Post Excerpt
Post Content
Post Image
Post Link
Post Date
Post Author
Loop
Pagination

Form

Form
Text input
Textarea
Select
Checkbox
Radio
Submit

Styling

Every style property, in every state, on every device

01States

Style the hover, not just the resting state

Pick Normal, Hover, Focus or Active above the style sections and edit as usual. EmVB writes the matching selector, with Focus mapped to :focus-visible.

Transitions between states, switched off under reduced motion
A dot on each state that has values
Works on elements and on classes

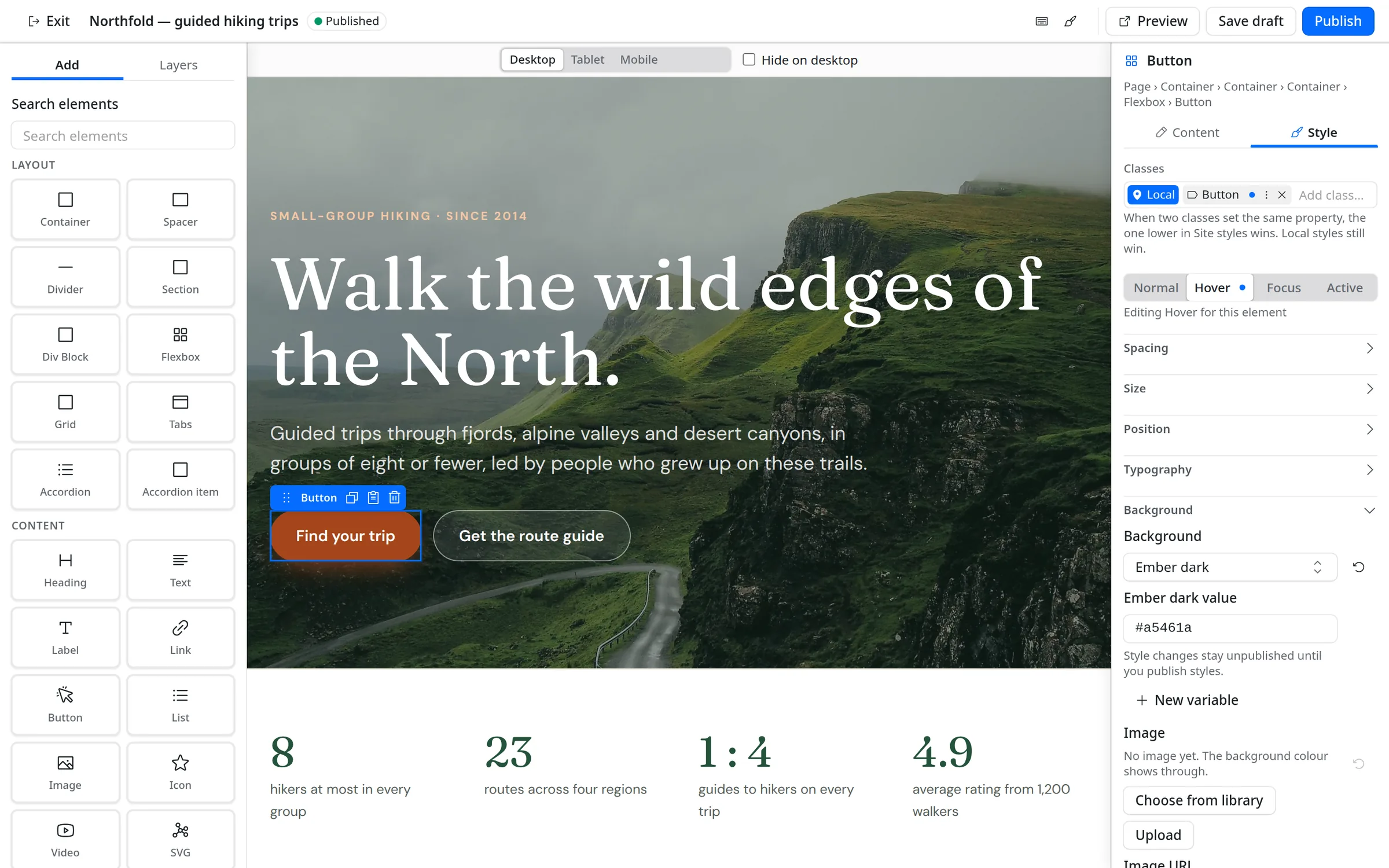

A button selected in the editor with the Hover state chosen; its Background is set to the Ember dark colour variable.

02Devices

Tune every breakpoint on the same canvas

Switch the canvas to Tablet or Mobile and every change becomes an override for that size. Desktop values stay where they are.

Tablet up to 1024 px, mobile up to 767 px
Hide on desktop, tablet or mobile
Overrides cascade down: desktop, then tablet, then mobile

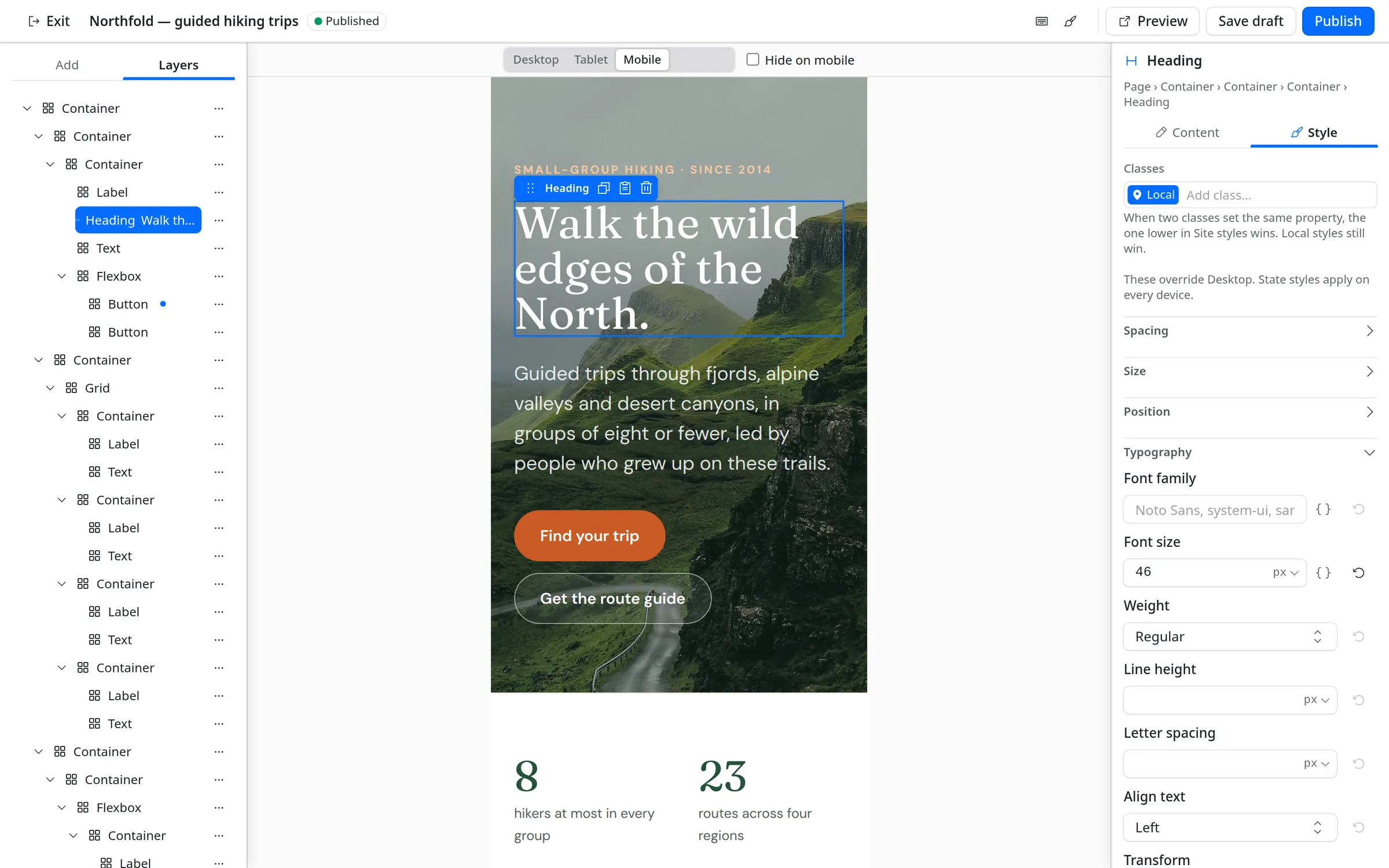

The canvas switched to Mobile, showing the hero at phone width while the Typography panel sets a 46 px heading.

03Site styles

One design system for the whole site

Variables, classes and tag defaults live in the Site styles drawer, next to the canvas. Changes wait as a draft until you press Publish styles, then reach every published page without republishing them.

Colour, font, font size and spacing variables
Classes with states; the lower class in the list wins
Design import and export as JSON

The Site styles drawer on the Variables tab, with Export and Import on their own row under the title, eleven colour variables with usage counts, and font variables below.

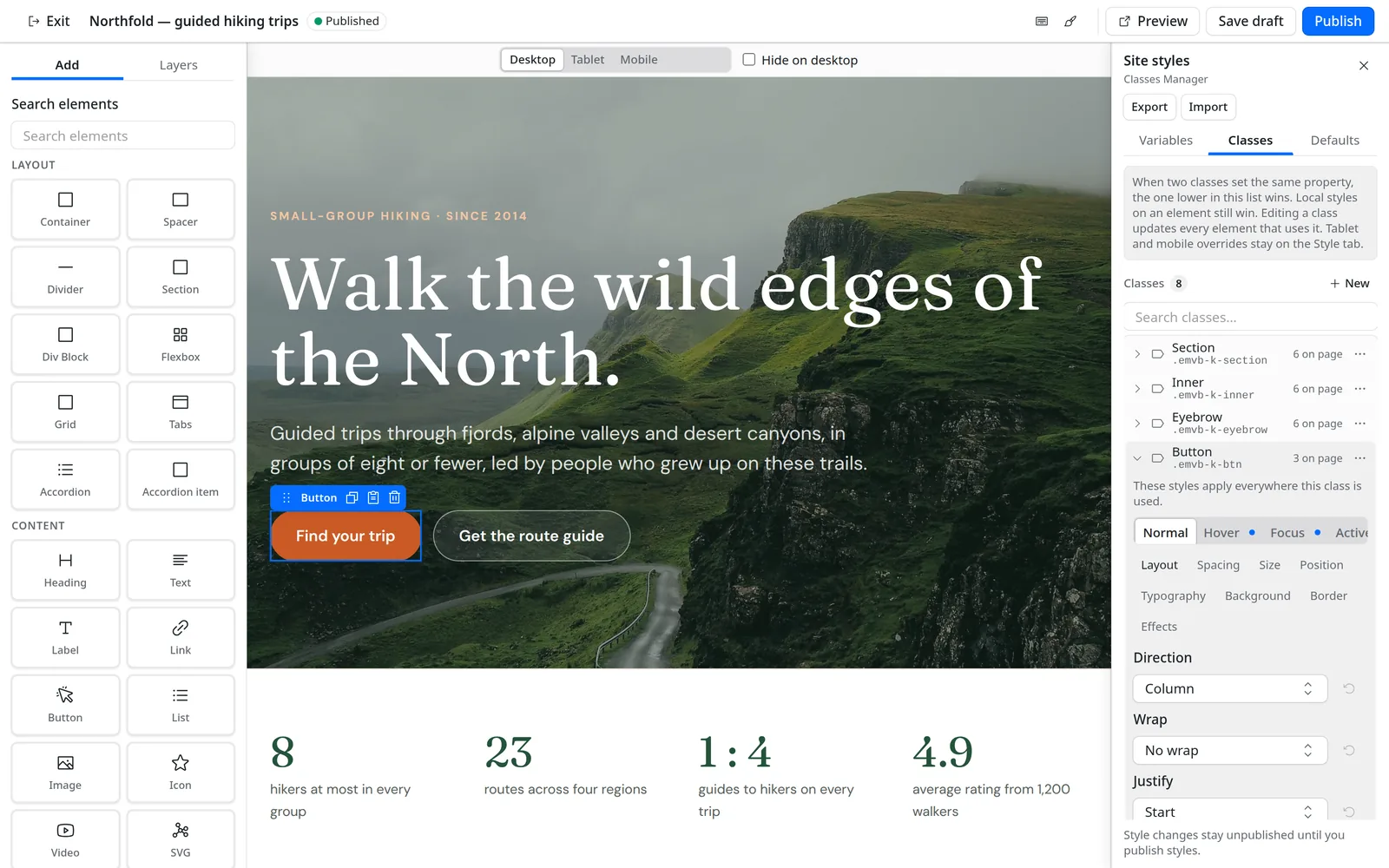

The Classes tab of the Site styles drawer, with the Button class open and its Normal, Hover, Focus and Active state tabs. — Classes tab

04Backgrounds

Layered backgrounds without custom CSS

Give any box an image from the media library, a gradient and a colour overlay on top. Or a background video.

Size, position and repeat for images
Linear, radial and conic gradients with up to 10 stops
Colours from variables, or as HEX, RGB or OKLCH

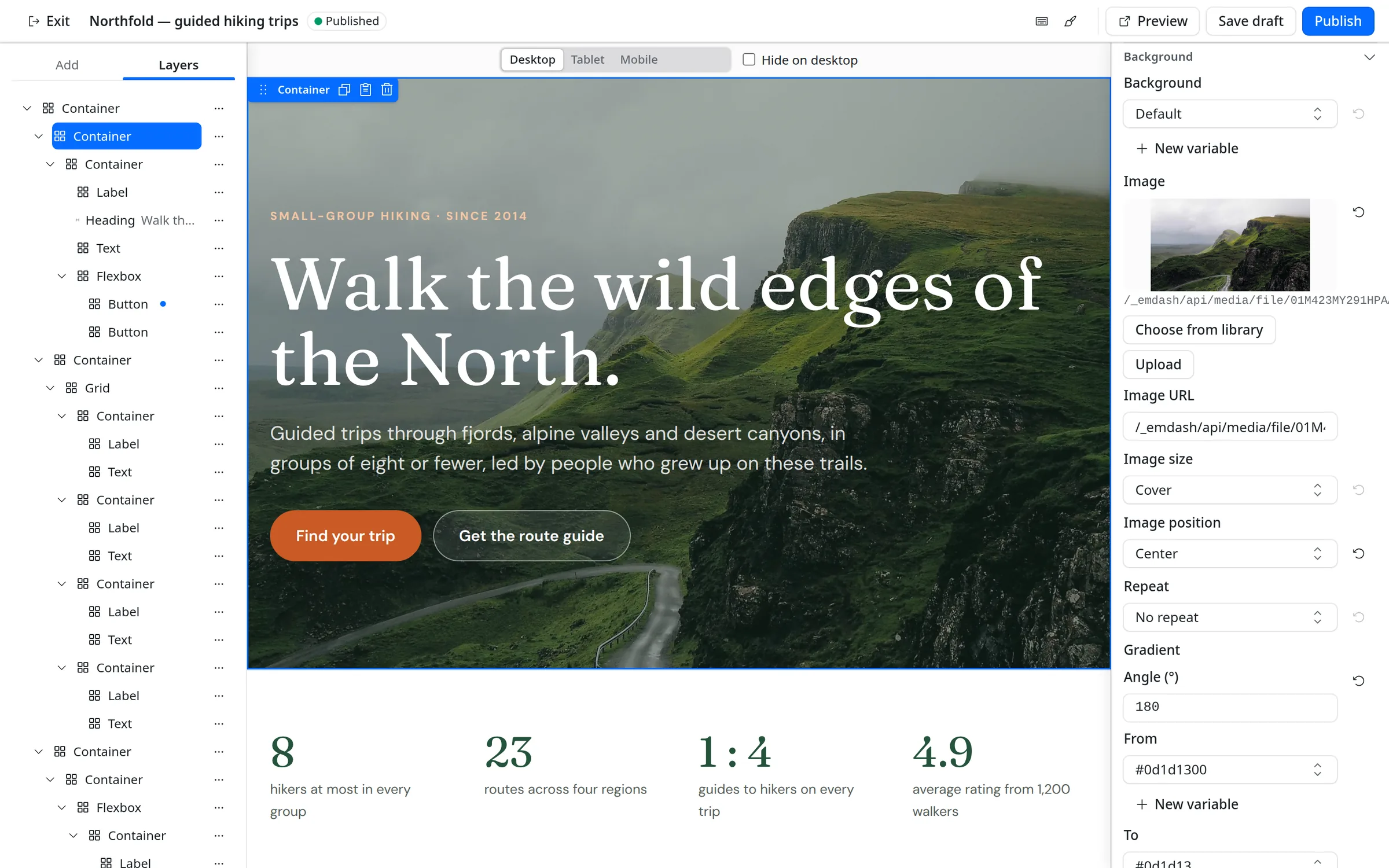

The hero section selected, with its Background panel showing an image from the media library, cover sizing and a gradient.

What visitors get

Built in the editor. Served as HTML and CSS.

Northfold is one EmVB page inside a header and footer from the Theme Builder. The only EmVB scripts it loads are for its popup and its tabs. The enquiry form uses the forms plugin’s script.

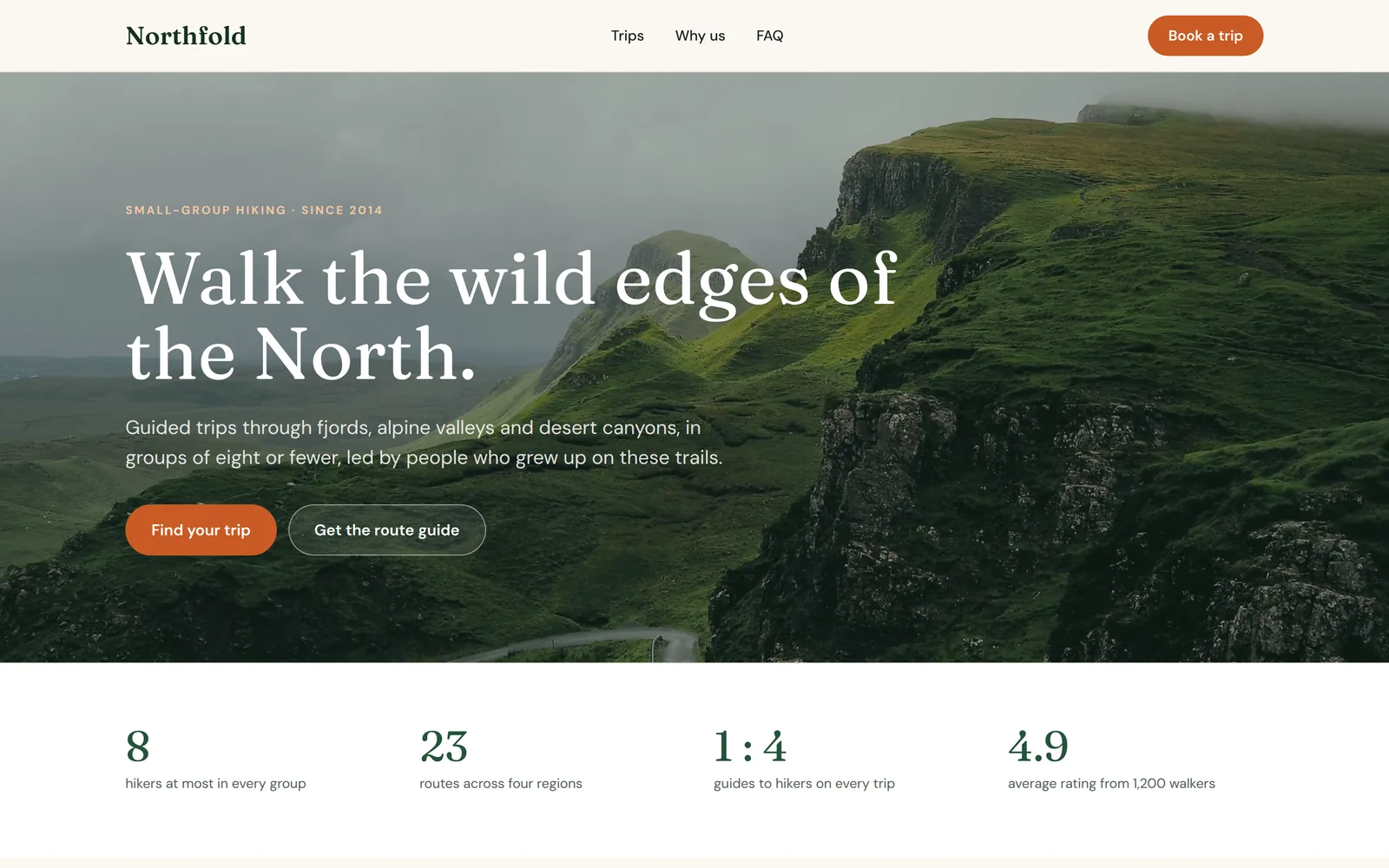

The published Northfold home page: a header with navigation and a hero photo of green ridges under the headline Walk the wild edges of the North.

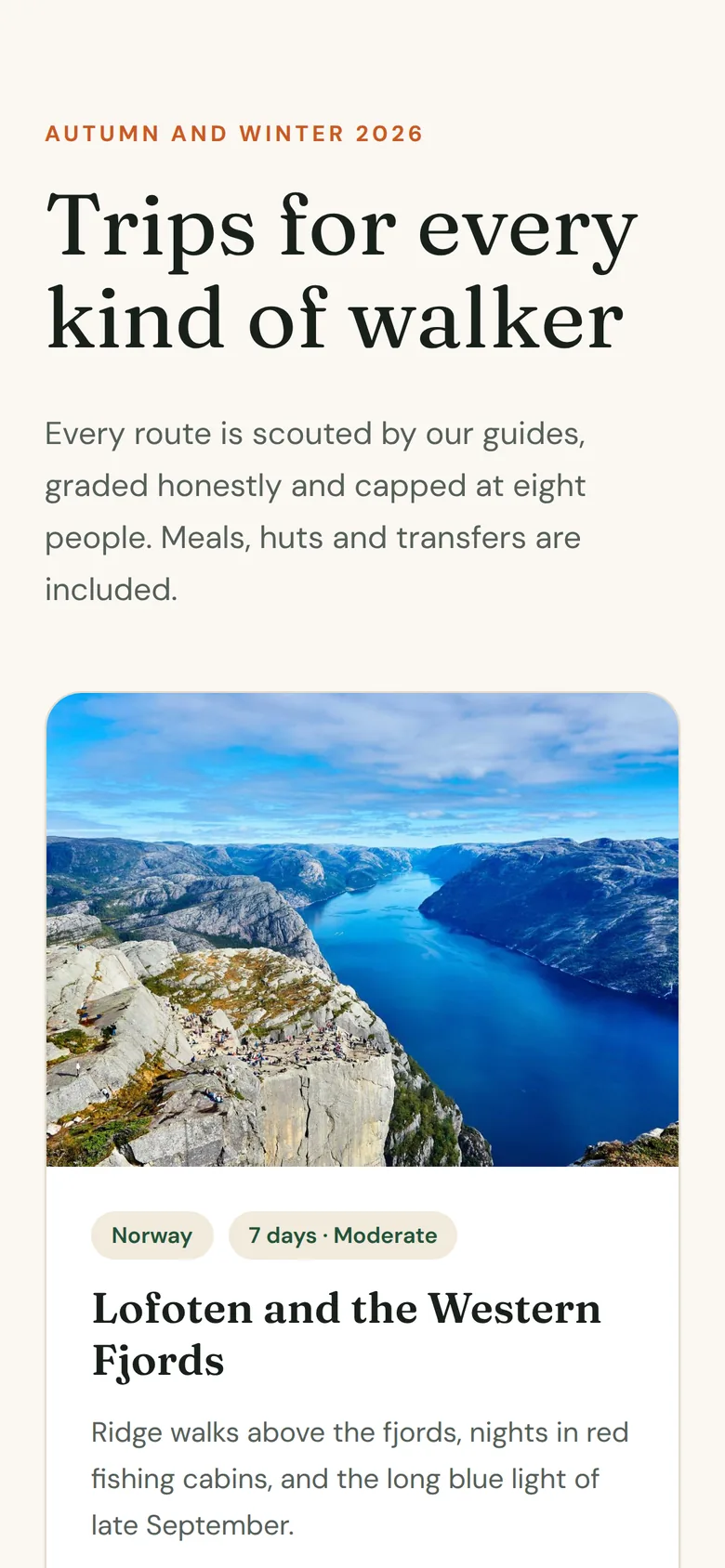

The trip cards stacked into one column on a phone.

Real screenshots from the Node demo. Northfold is a made-up company; photos from Unsplash via Lorem Picsum.

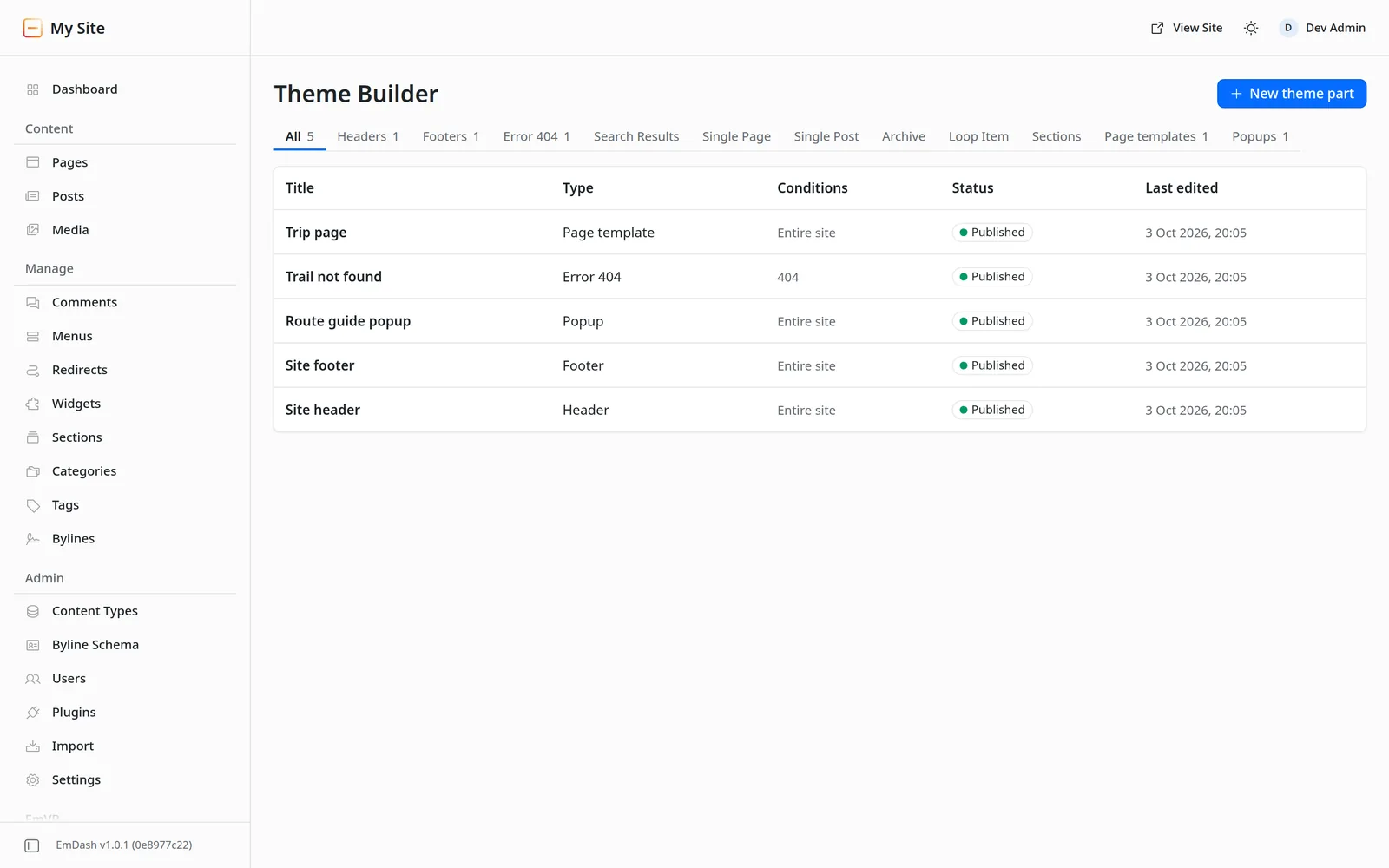

Theme Builder

Headers, footers, templates and popups, shown where you say

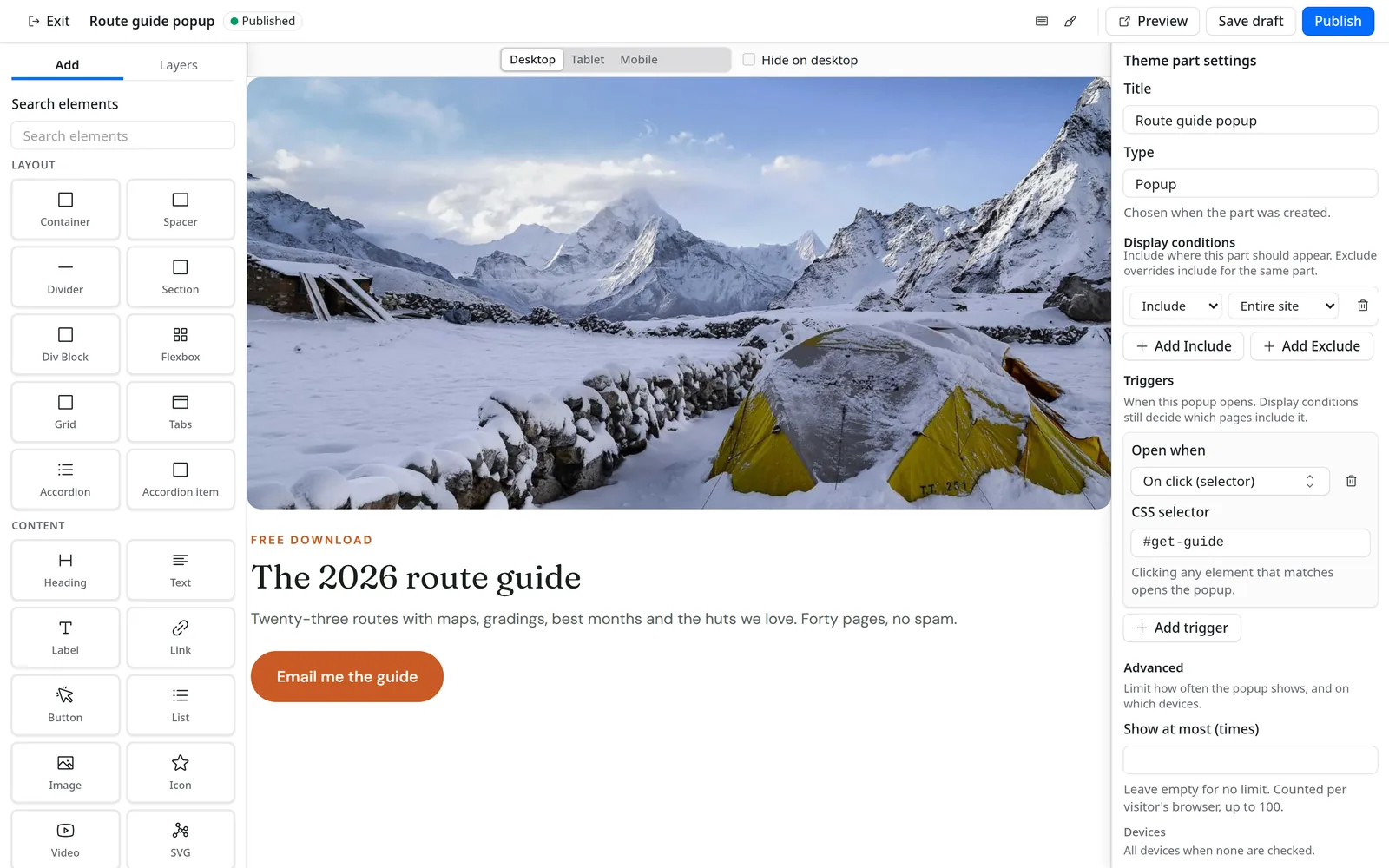

Theme parts are built in the same editor. Display conditions include or exclude them for the entire site, the front page, a collection, a single entry, archives, taxonomy terms, search or the 404 page. The most specific part wins, and an exclude beats an include.

12 part types

Header
Footer
Error 404
Search Results
Single Page
Single Post
Archive
Loop Item
Section
Page template
Popup
Float

Popup triggers

On page load
After a delay
On scroll
On click
On exit intent
After inactivity

Limit how often a popup shows and on which devices. Close and Escape return focus.

Floating bars and corners

A Float sits on the top or bottom edge, or in a corner. Visitors can close it until their next visit, with no cookie.

Dynamic content

Single, archive and loop item parts use Loop, Pagination and post elements: title, excerpt, content, featured image, link, date and author.

More of the editor

Text editing, pages, grid, forms, popups, dark mode

Open full size

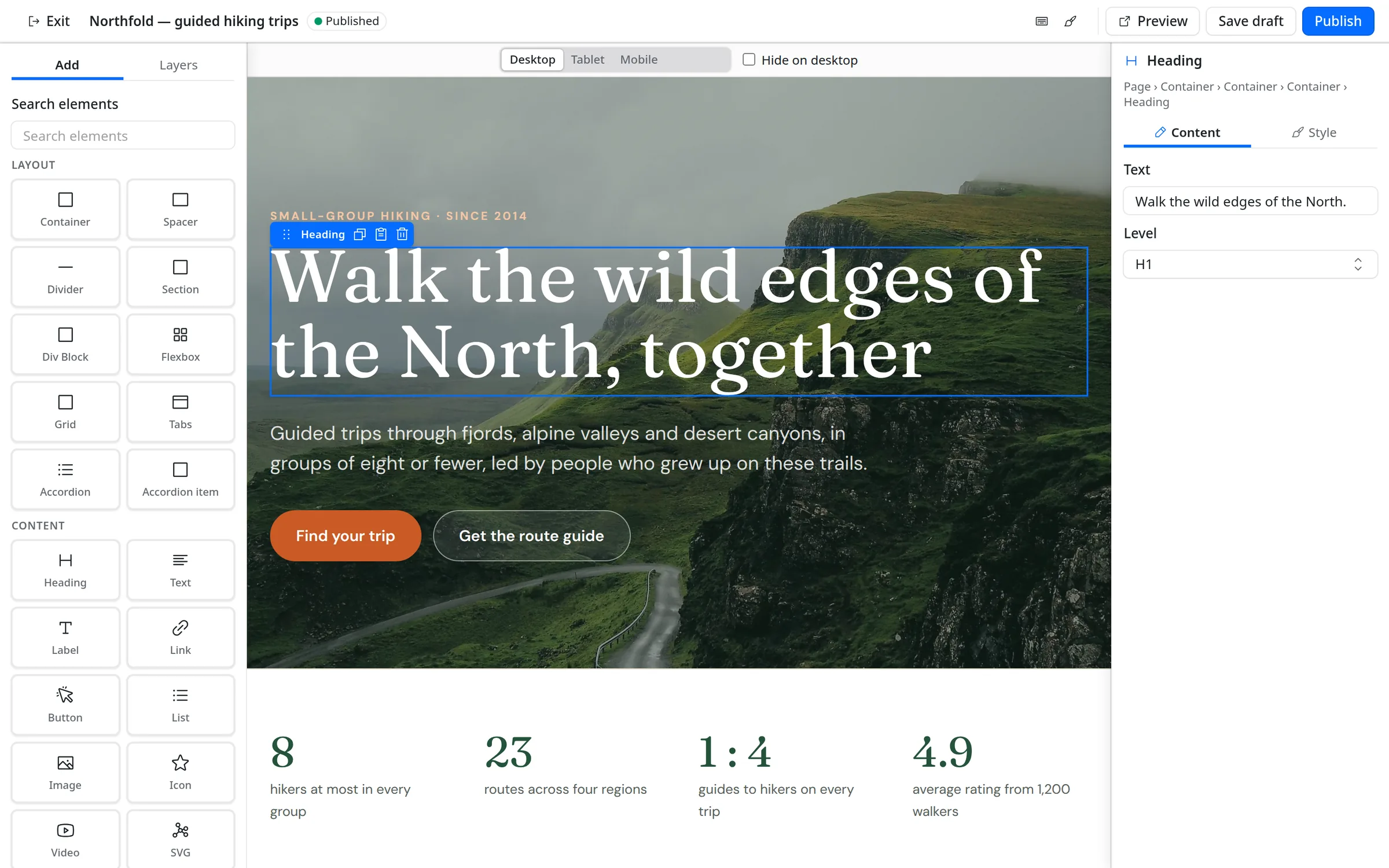

Double-click any text on the canvas to edit it in place.
Open full size

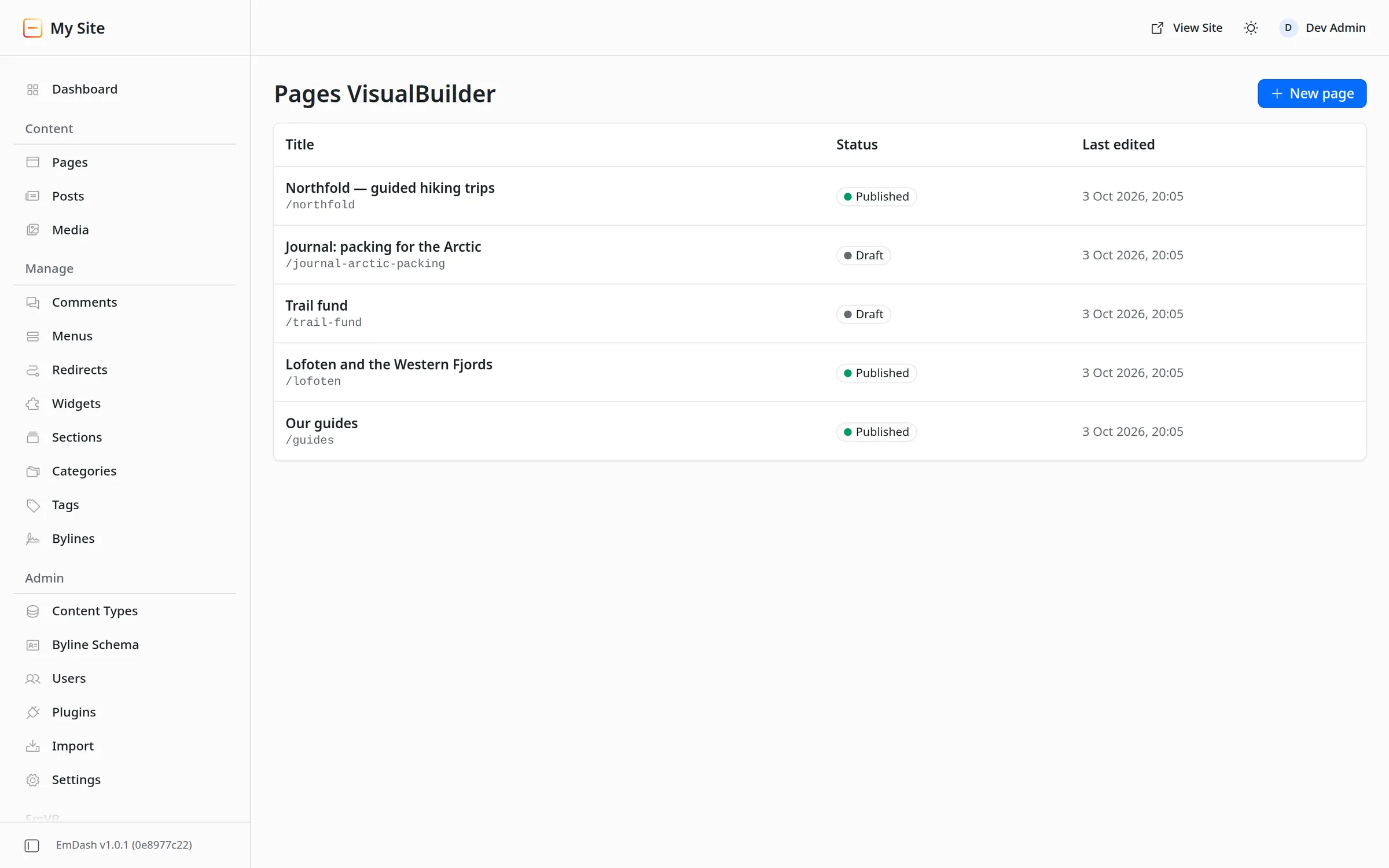

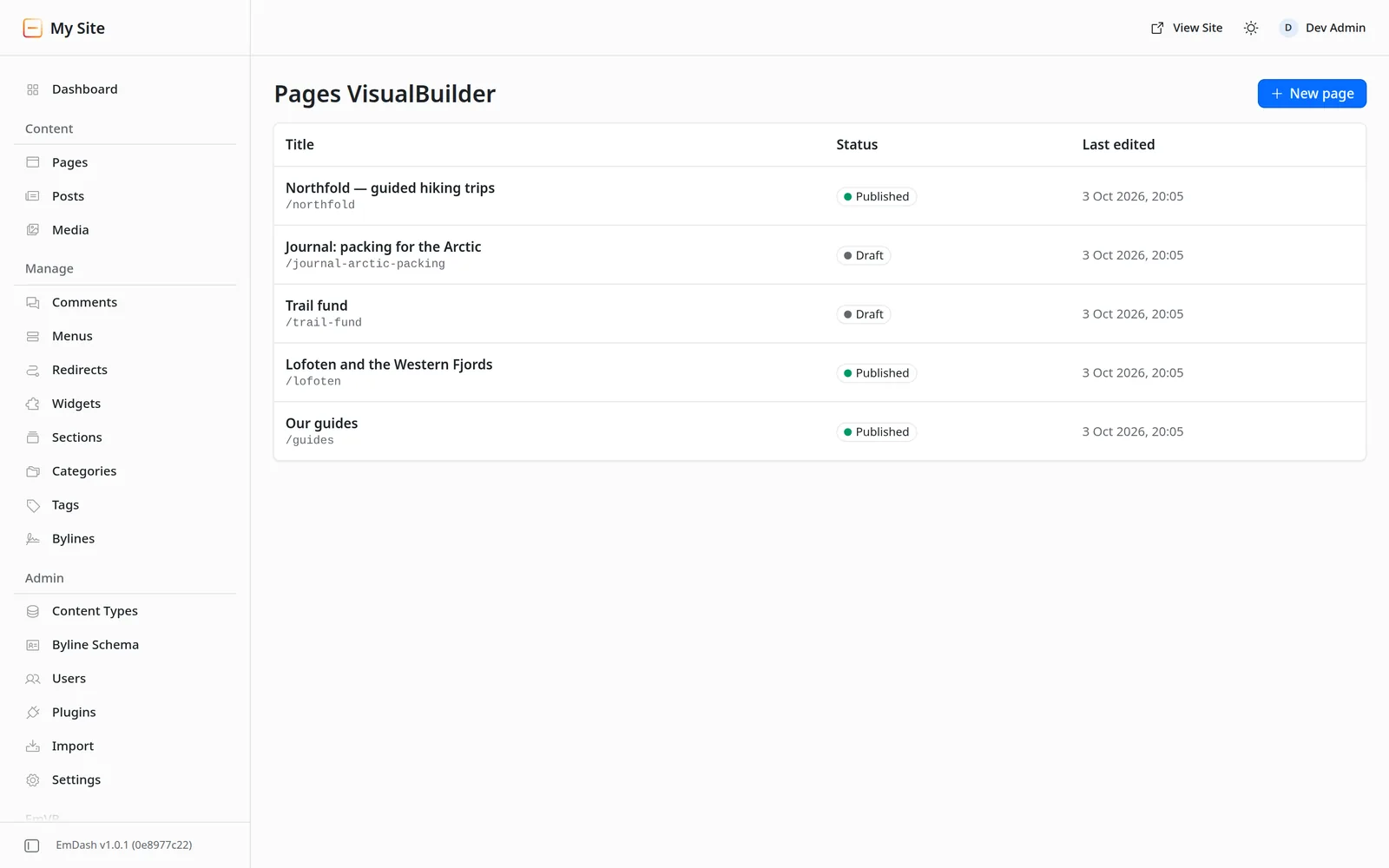

Pages: every EmVB page with its path and status, one click from the editor.
Open full size

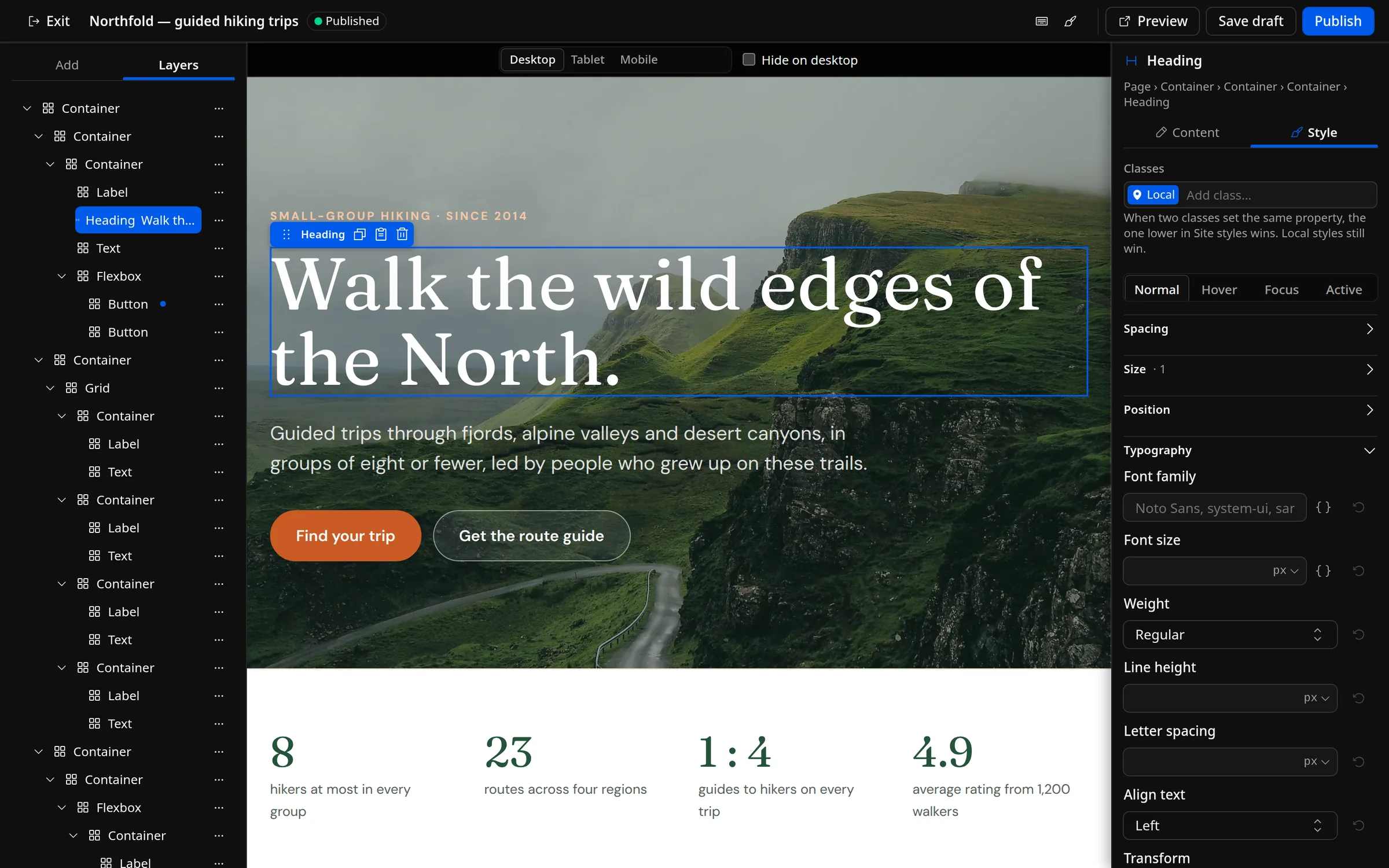

The editor follows the EmDash admin theme, light or dark.
Open full size

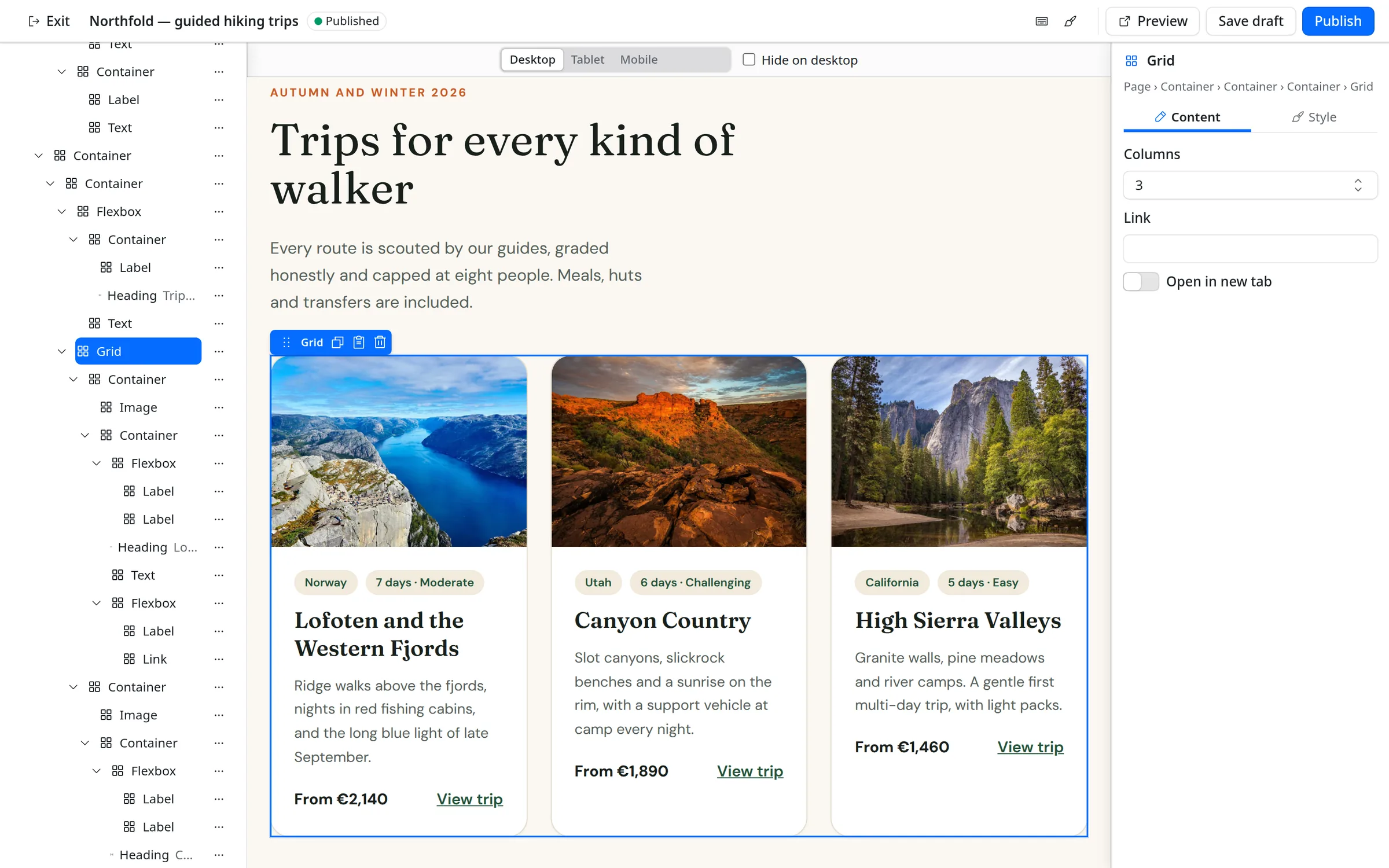

CSS Grid containers, from 1 to 12 columns, with spans on the children.
Open full size

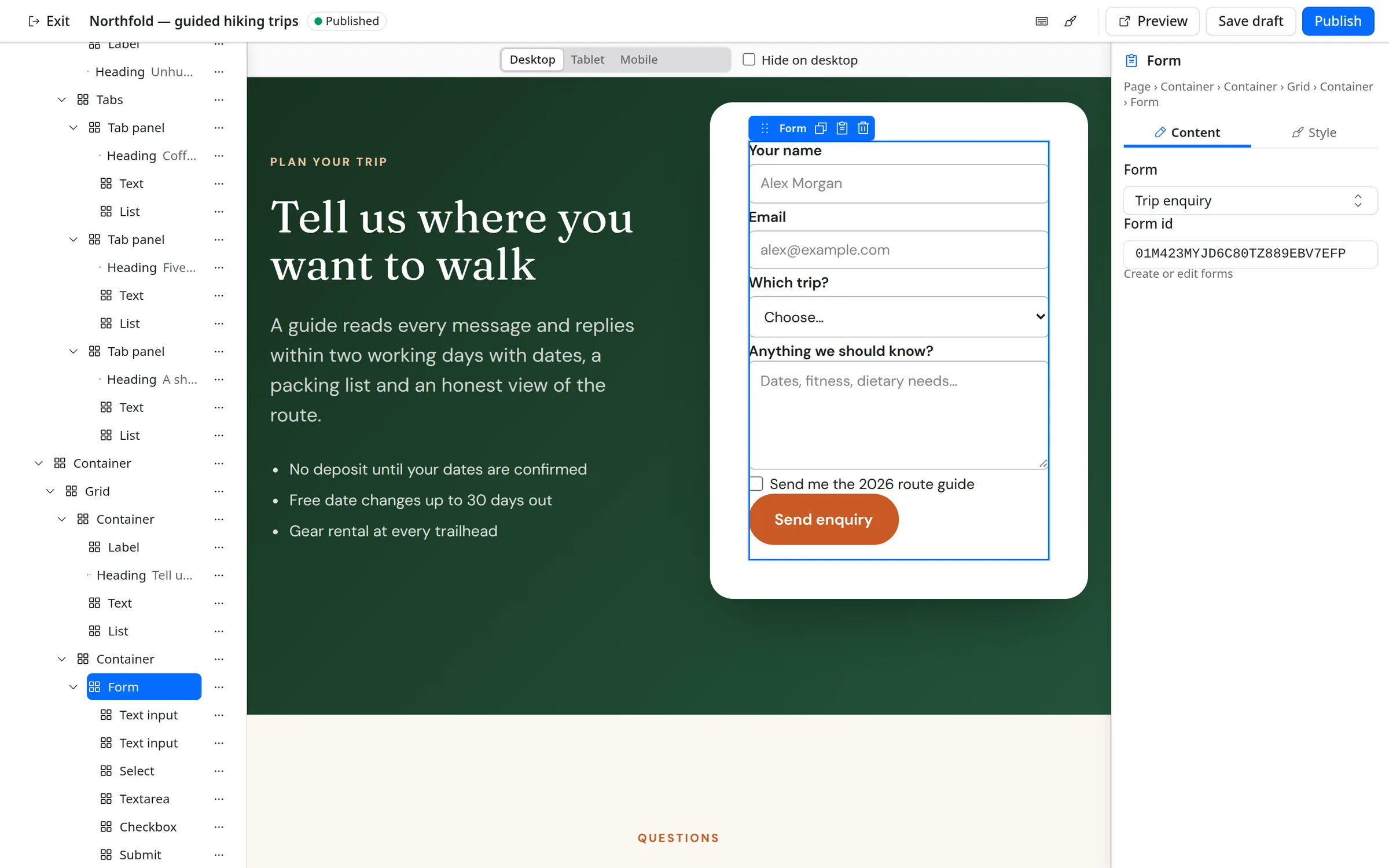

Form elements post to the EmDash forms plugin, with clean default fields you can restyle.
Open full size

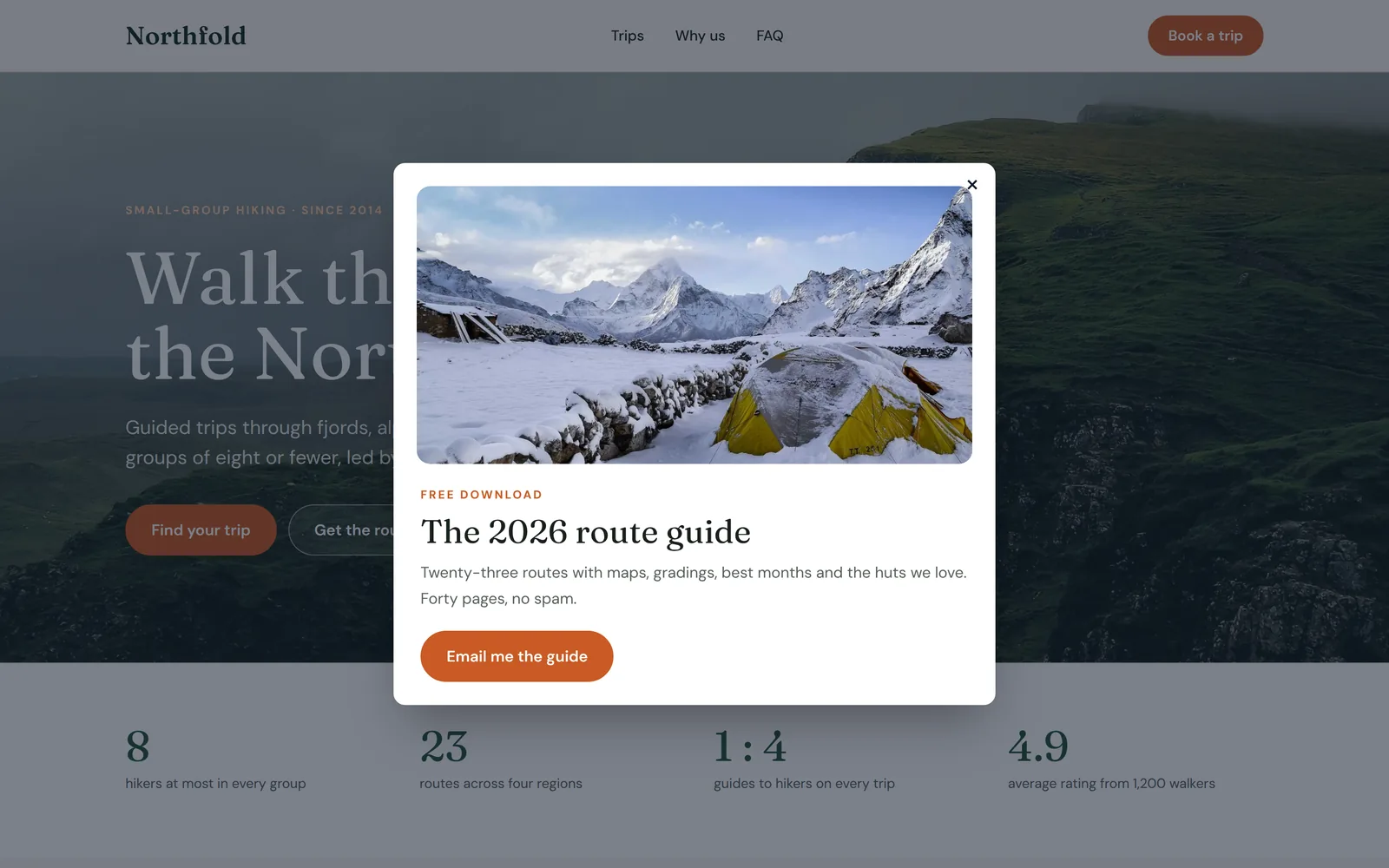

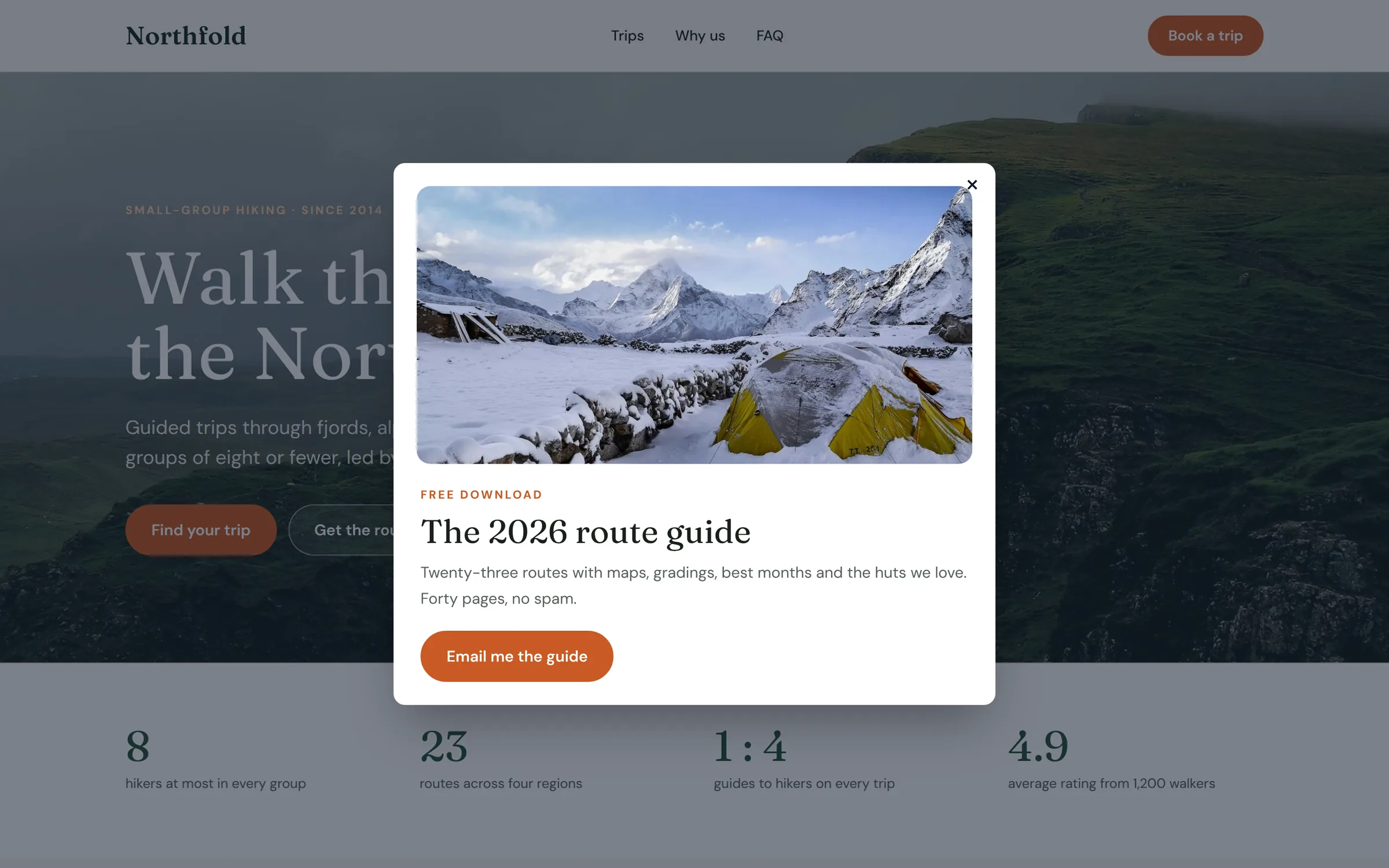

The same popup on the published page, opened by its click trigger.

Under the hood

From canvas to markup in four steps

Edit
A full-screen React and Kumo editor inside the EmDash admin. The canvas is a sandboxed iframe with scripts off.
Store
Each page is one JSON layout in the emvb_pages collection, checked against schema version 12 and the 512 KB limit before it is saved.
Render
On the server, the layout and the site design become HTML and CSS. Unknown element types render nothing.
Serve
The host’s Astro route places the result inside its own layout. Visitors download markup and styles.

layout.jsonstored

{  "id": "page-headin002",  "type": "heading",  "props": { "text": "Walk the wild edges of the North.", "level": 1 },  "style": {    "color": { "var": "white" },    "maxWidth": { "value": 860, "unit": "px" }  },  "devices": { "mobile": { "fontSize": { "value": 46, "unit": "px" } } }}

page.html + page.cssserved

<h1 class="emvb-heading emvb-e-page-headin002">  Walk the wild edges of the North.</h1>

.emvb-e-page-headin002{max-width:860px;color:var(--emvb-c-white)}@media (max-width: 767px){.emvb-e-page-headin002{font-size:46px}}

The hero heading of the Northfold demo, as saved and as published (line breaks added).

Performance and safety

Small output, strict input, lots of tests

Measured on the 0.2.1 release with the project’s own benchmark and test commands.

median server render of a 300-element page, p95 2.3 ms, against a 20 ms budget: 1.1msbun run bench:render, 200 runs
of gzipped CSS for that 300-element page, against a 15 KB budget: 995Bbun run bench:css
unit and component tests passing, none failing: 2,323bun run test
seeded bugs on record, each one proven to make a test fail: 1,518scripts/seeded-bugs.json

Validated on save and on read
Every layout is checked against the schema before it is stored and again before it renders. Pages are capped at 512 KB and the design at 256 KB.
Sanitised output
The HTML serializer escapes by construction, links pass a protocol allowlist and SVG is sanitised. The editor canvas is a sandboxed iframe with scripts off.
Role-checked writes
Every write route needs an editor role or above. Logs carry ids and error codes, never page content.
Accessible by default
Focus styles target :focus-visible, accordions are native <details>, and animations stop under prefers-reduced-motion.

Get started

Install it, or run the demo first

EmVB 0.2.1 is on npm as @perkyzz/emvb. Or clone the repository and try it on the Node demo; the Cloudflare demo with D1 and R2 runs with bun run demo:cf.

Add it to your EmDash site

bun add @perkyzz/emvb# or npm i; your site’s build compiles it

Then register emvb() next to your other EmDash plugins and add the public route. The guide covers both, plus forms.

Read the install guide

Run the demo locally

git clone https://github.com/PerkyZZ999/EmVB.git

bun install# Bun 1.4 and Node 24 are verified

bun run demo:node# http://127.0.0.1:4411

Sign in with the dev-only bypass link below.
Open Pages VisualBuilder and click Set up EmVB once.
Click New page, edit the heading and Publish. It is served at /your-slug.

http://127.0.0.1:4411/_emdash/api/setup/dev-bypass?redirect=/_emdash/admin

Just looking? Try the editor in your browser: no install, and your edits stay on your device.

FAQ

Questions people ask first

Does EmVB add JavaScript to my site?

Not to a normal page. A few small scripts load only where a page needs them: popups, floating bars, keyboard support for tabs (which already work with CSS alone) and Escape for menu dropdowns. Forms use the EmDash forms plugin’s own script.

Which EmDash version does it need?

EmDash CMS 1.0 to 1.2 (built and tested on 1.2). EmVB is a native plugin. It adds its own section to the admin sidebar with Pages VisualBuilder and Theme Builder.

Where does it run?

Anywhere EmDash runs. The repository has two demos: Node with SQLite, and Cloudflare Workers with D1 and R2. The same stored layout renders the same way on both.

Can editors break the site?

Layouts are validated against the schema on save and again on read, so a malformed page is refused rather than rendered. Size limits apply, SVG is sanitised, and only editors and above can write.

Can I move a design to another site?

Yes. The Site styles drawer exports the site design as JSON, and the other site imports it.

Is it on npm?

Yes: @perkyzz/emvb, version 0.2.1. It ships TypeScript source and your site’s build compiles it. The install guide covers the plugin entry and the public route.
